As a
turnkey
solution
integrated in the
MB1000
our own railway-certified on-
board computer designed to
meet the demanding
requirements of rolling stock
installations.
As a
software
service
to be integrated in third party
computing platforms with
dedicated wireless
communications.
As a
software
service
to be integrated in third party
computing platforms with
dedicated wireless
communications.
Option to
transmit data
directly to
NxT Aware
the Nomad Tech’s remote
monitoring solution and business
analytics. Or with the possibility
to be customised to
interface with third party off-board solutions.
Option to
transmit data
directly to
NxT Aware
the Nomad Tech’s remote
monitoring solution and business
analytics. Or with the possibility
to be customised to
interface with third party off-board solutions.

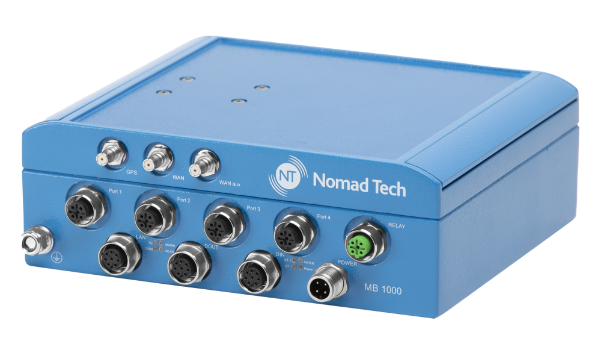

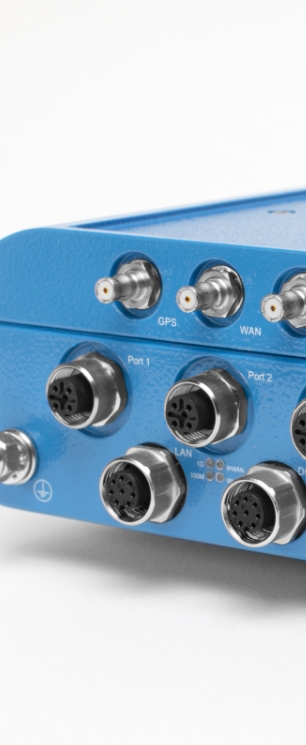

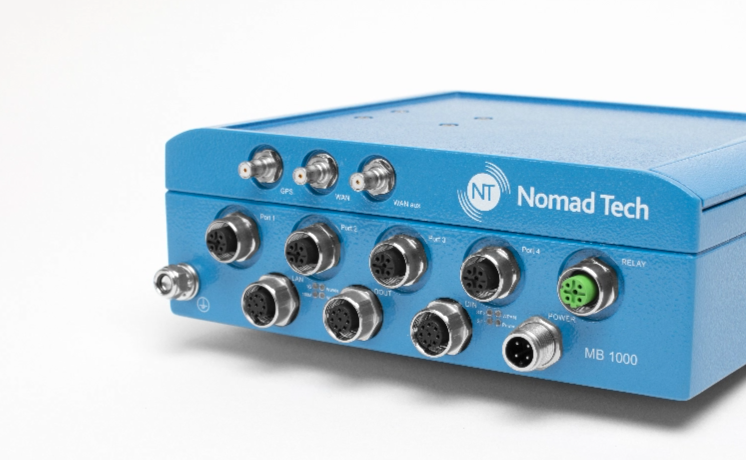

The Nomad Tech Monitoring Box unit is a hardware for railways applications which hosts the Nomad Tech on-board software, NxT Sense solution.

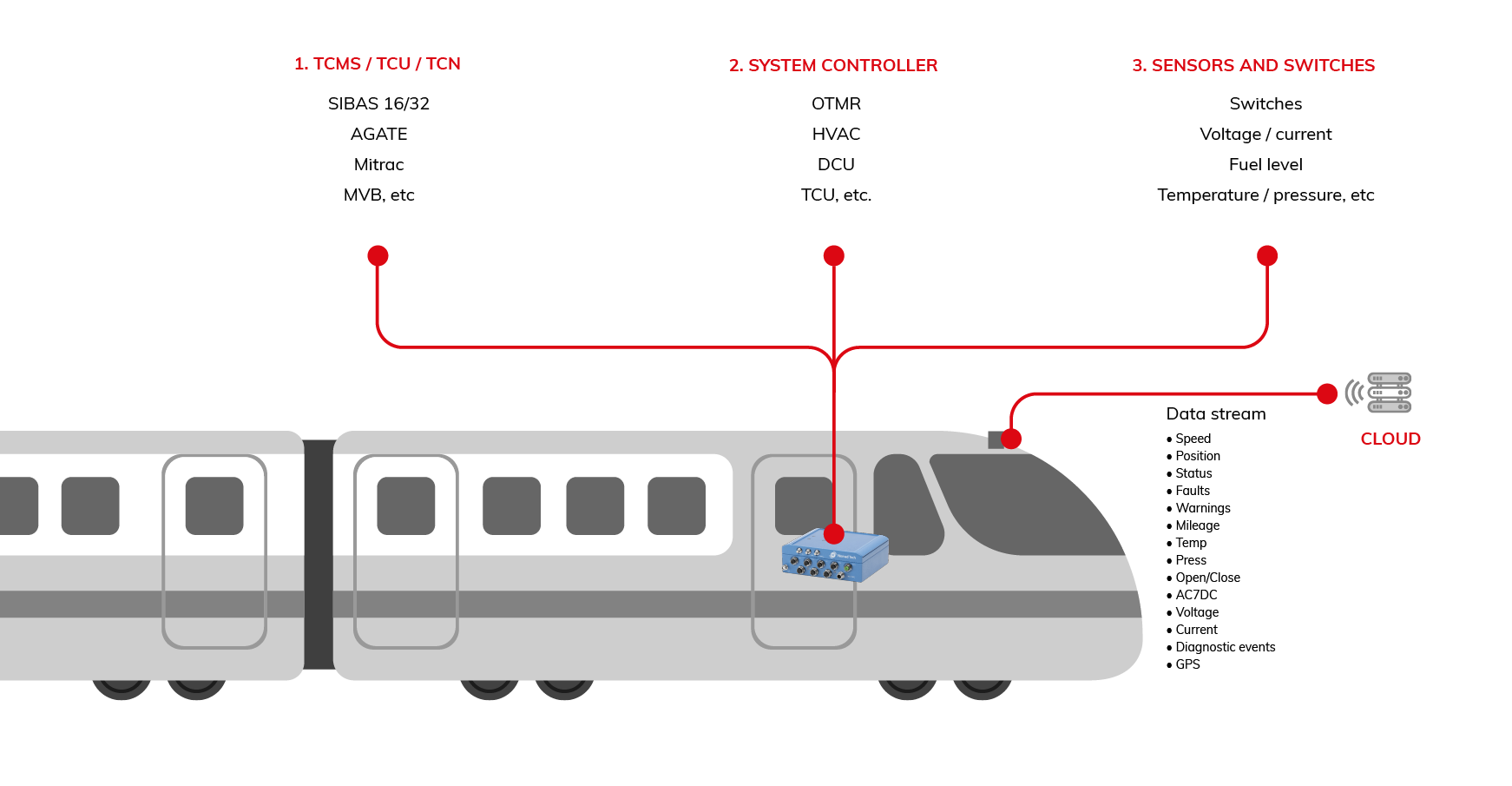

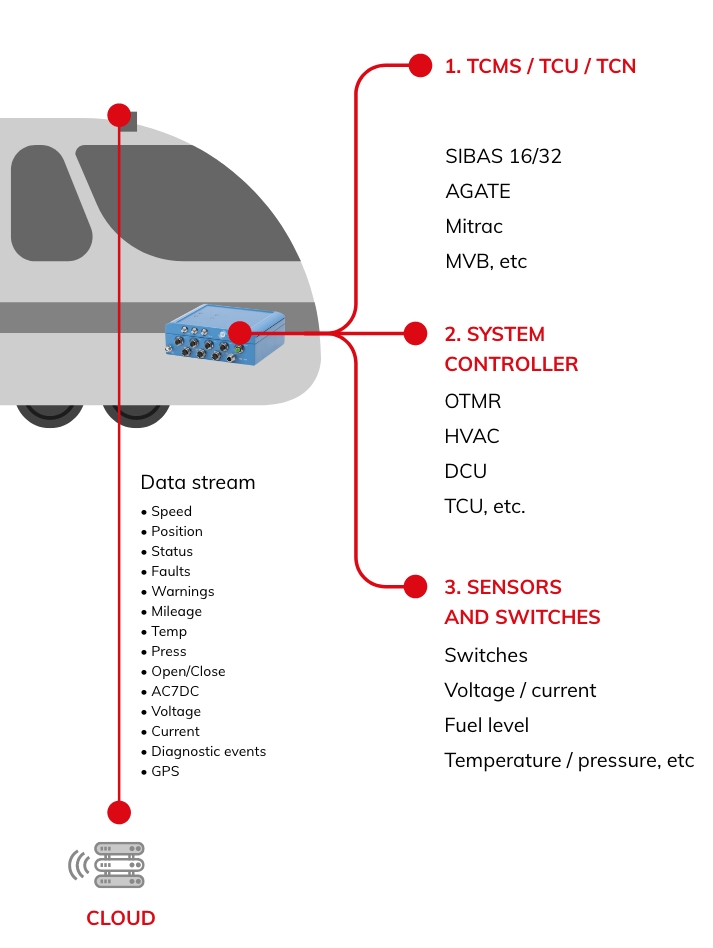

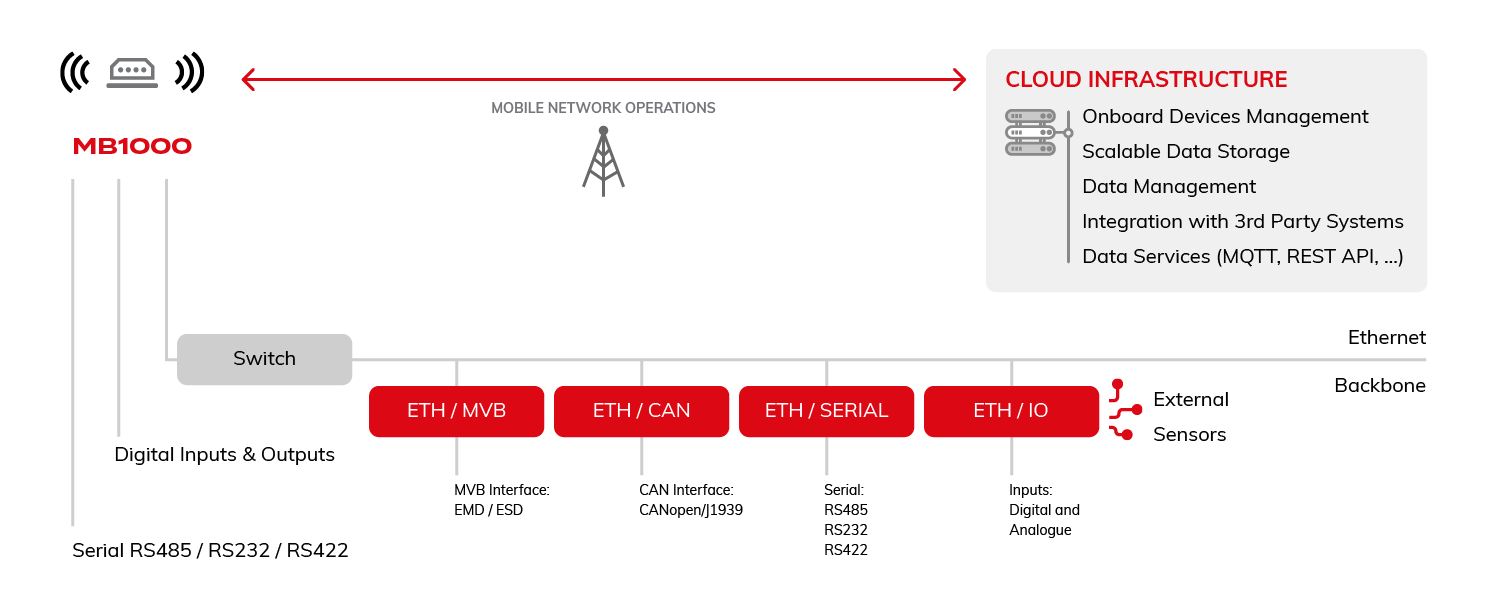

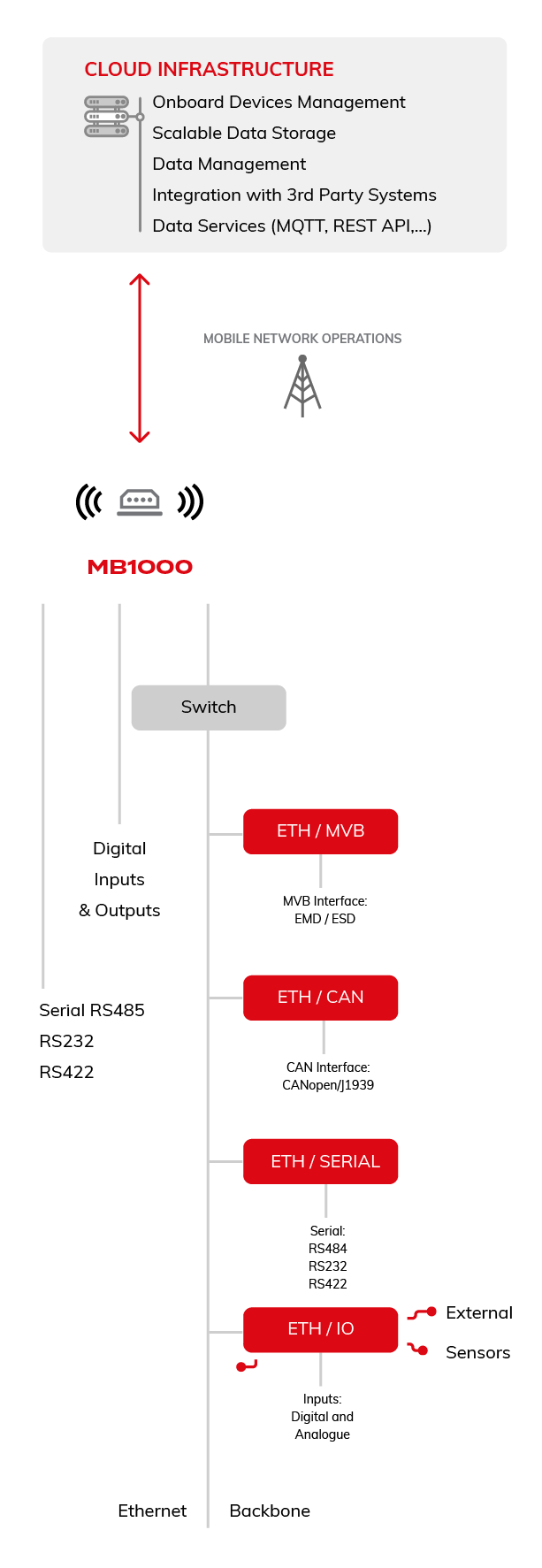

The MB1000 series Monitoring Box hardware platform has multiple interfaces to connect and gather data from different on-train systems.
The collected data can be locally pre-processed and transmitted to a shore side application server either by existing communication equipment via LAN, or via plugged-in cellular modem.
The MB1000 series Nomad Tech Monitoring Box hardware platform is rugged and completely maintenance free.
Supplied with a built-in GNSS receiver to enhance data with train location information and support remote asset tracking services.
GENERAL SPECIFICATIONS:
● Runs software to collect data from multiple sub systems of the train.
● Transmission of data to off-board servers via wireless communication.
● Multiple connection ports
● Quick view of operation status by LED’s
● GPS incorporated
● Industrial grade components
● Rugged & Fanless
● Maintenance free
● Railways compliant
● Remotely configurable and updatable
● Box operational status checked remotely

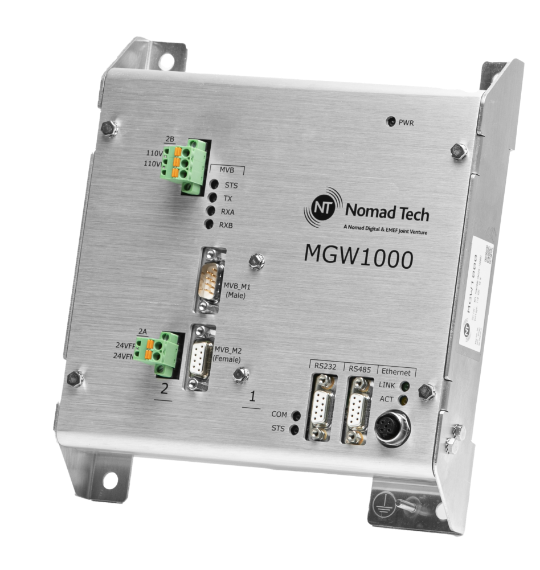

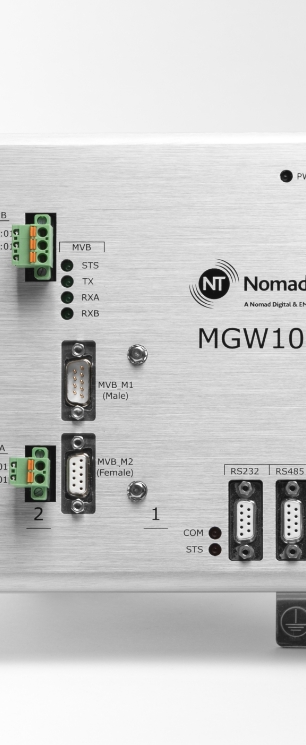

The Nomad Tech MGW1000 unit is a hardware for railways applications, part of the Nomad Tech on-board solution NxT Sense used when it its required to distribute and extend the data acquisition across a train installation.
The MGW1000 series platform is a modular gateway supporting the interface to Multifunction Vehicle Bus (MVB) with built-in solution for safe non-intrusive signal sampling. Provides a read-only functionality ensuring that the device does not interfere with any operations of MVB bus.
GENERAL SPECIFICATIONS:
● MVB read-only Gateway 10/100 Mbps Wired Ethernet in accordance with IEEE 802.3 via M12
● Two independent (isolated) MVB interfaces
● Suitable for 110VDC power, in accordance with EN 50155
● Operating temperature range: -40°C to +70°C (+85°C for 10 minutes)
● Conformal Coating
● Railways compliant
● Maintenance free
